MAMEN MIC-05 3.5mm Audio Plug Hypercardioid Recording Microphone For DSLR Camera Digital Video Camcorder

Parameters:

Model number: MIC-05 Camera Microphone

Material: Plastic

Product Size: 156*33*86mm

Product Weight: 81g

Monomer: Electrostatic Type Condenser Microphone

Channel: Mono

Frequency response: 50Hz-16kHz

Sensitivity Enhancement: +20dB ± 20dB

Level Noise level: 24 dB A

Directivity: Hypercardioid pointing

Effective pickup distance: 3 m

Output impedance: 200Ω ± 30% (at1kHz)

Maximum sound pressure level: 130dB (THD≤1.5% at 1KHz)

Sensitivity: -45dB ± 3dB (0dB = 1V / Pa at 1kHz)

Powered By: AAA 1.5V alkaline battery, Power consumption ≤ 5mA (typical)

Battery life: New battery can be used continuously for 70-80 hours

（Conforms to EU Electromagnetic Compatibility 2004/108/EC and FCC Part15 standards.）

Features:

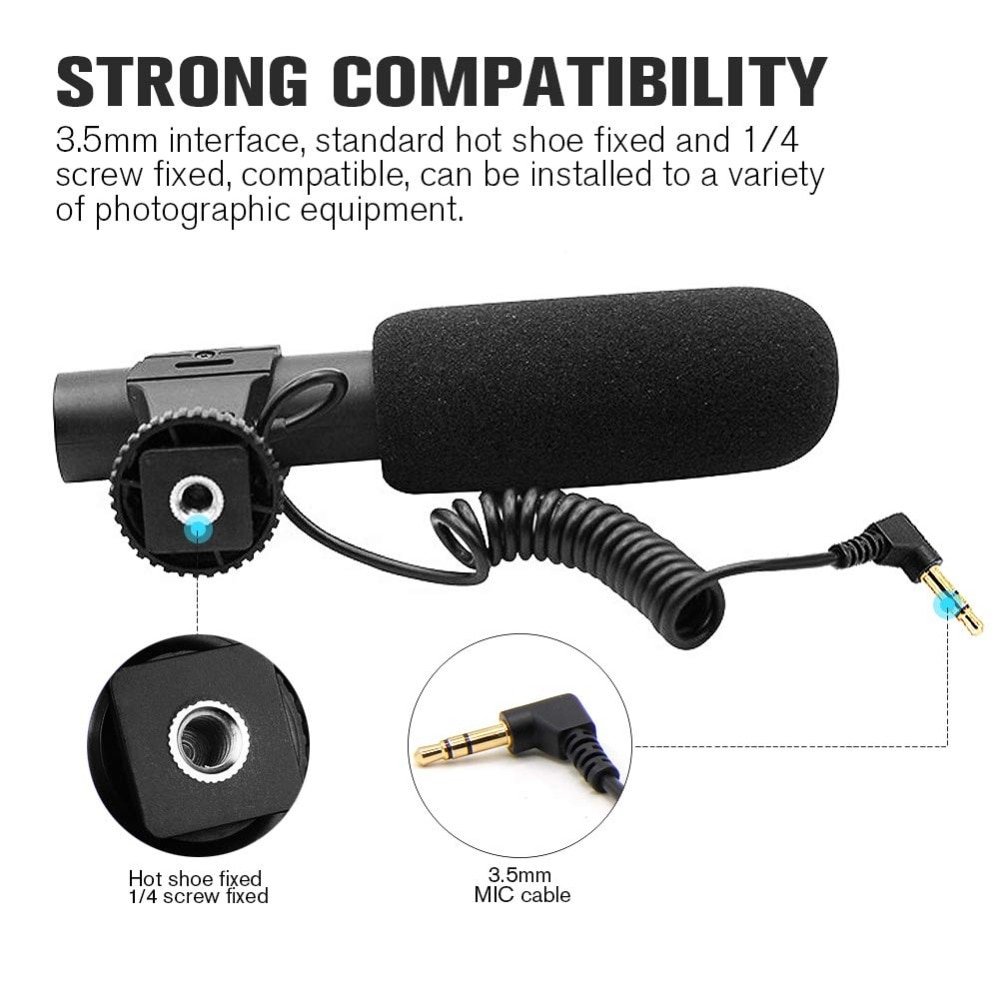

1. Strong compatibility, suitable for 3.5mm MIC audio interface.

2. Fits to standard cold shoe seat and 1/4'' screw mount.

3. Simple power supply. MIC-05 microphone adopts a AAA 1.5V energy-saving and environmental protection battery, which can be bought anytime and anywhere.

4. MIC-05 enhances the effect of microphone pickup. “+20dB” mode enhances the sensitivity and increases the microphone volume, extends the pickup range, making the audio recording effect is better and clearer.

5. MIC-05 microphone have a spring cable, the length is 700mm, the line is placed in the front section, easy to operate.

Descriptions:

1. When the button is “OFF”, it is not working. When the button is pushed to “0dB” and “+20dB”, it belongs to the working state.

2. The indicator light is always green when the microphone is working. The battery should be replaced when the red light flashes.

3. Powered by a AAA  battery, the MIC-05 can work continuously for about 70-80 hours, and has a low voltage alarm prompt. (The actual continuous working hours may vary depending on the conditions of use.)

Package List:

1 × MIC-05 Camera Recording Microphone(With 3.5mm Plug & 700mm Spring Cable)

1 × Windproof Cotton

1 × Instruction Manual

Product display
